Thi                   This unit has True Bypass: The circuit is entirely removed from your signal path in bypass mode.

            This effect must be powered with a proper ‘Boss style’ adaptor. +9V (negative  tip)

            *  WARNING: Using the wrong power supply can DAMAGE or DESTROY your unit. *

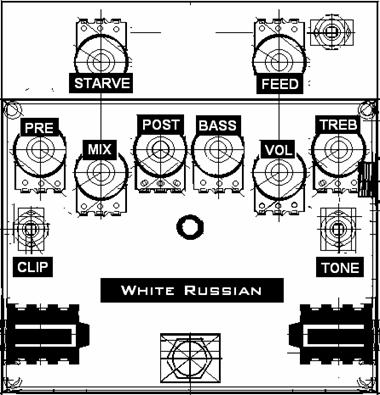

Controls:

PRE

POST

BASS

TREBLE

VOL

STARVE

FEED

FEED SW

CLIP

TONE

MIX

– Pre-gain, or distortion. ‘Sustain’ control on the original.

– Post-gain. This provides drive control for the second of two distortion stages.

– Separate BASS and TREBLE controls replace the ‘jerk of all trades’ one knob

   ‘Tone’ on the original. These work in conjunction with the Tone switch.

– Yup. When BLEND MOD is present, this controls fuzz side master volume.

– Mimics ‘dying battery’ or ‘brown’ sounds and textures. Full Clock-Wise = full power

– Controls internal feedback loop amount. This will self-oscillate and may be LOUD!

– Switch next to FEED knob disables feedback loop. (Switch toward pot to enable).

– Switch up removes clipping in first drive stage for higher, less squeezed output.

– 3 position switch. Down=mid notch, Up=full range, Mid=bypass tone stage. (BASS

    And TREBLE will do nothing in this mode. Output WILL INCREASE DRASTICALLY!

– (If Present) Full CCW=All Clean. Full CW=All Fuzz. Dial fuzz first then blend to taste.
